STANDOVER HEIGHT |
63CM |
FRAME |
HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS |
FORK |
HAND BRUSHED AL6061, FORGED DROP OUTS |
STEERER |
TUBE AL6061 |
CRANKS |
SAMOX 150MM DIRECT MOUNT, NQF |
PEDALS |
ER WORKS PLATFORM, CNC'D AL6061, STUDDED, CARTRIDGE BEARING |
BOTTOM BRACKET |
SAMOX 24MM EXTERNAL CUP, SEALED CARTRIDGE |
RIMS |
24 X 28H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE |
REAR HUB |
ER 4 BEARING CASSETTE FREEHUB, CNC'D AL6061 |

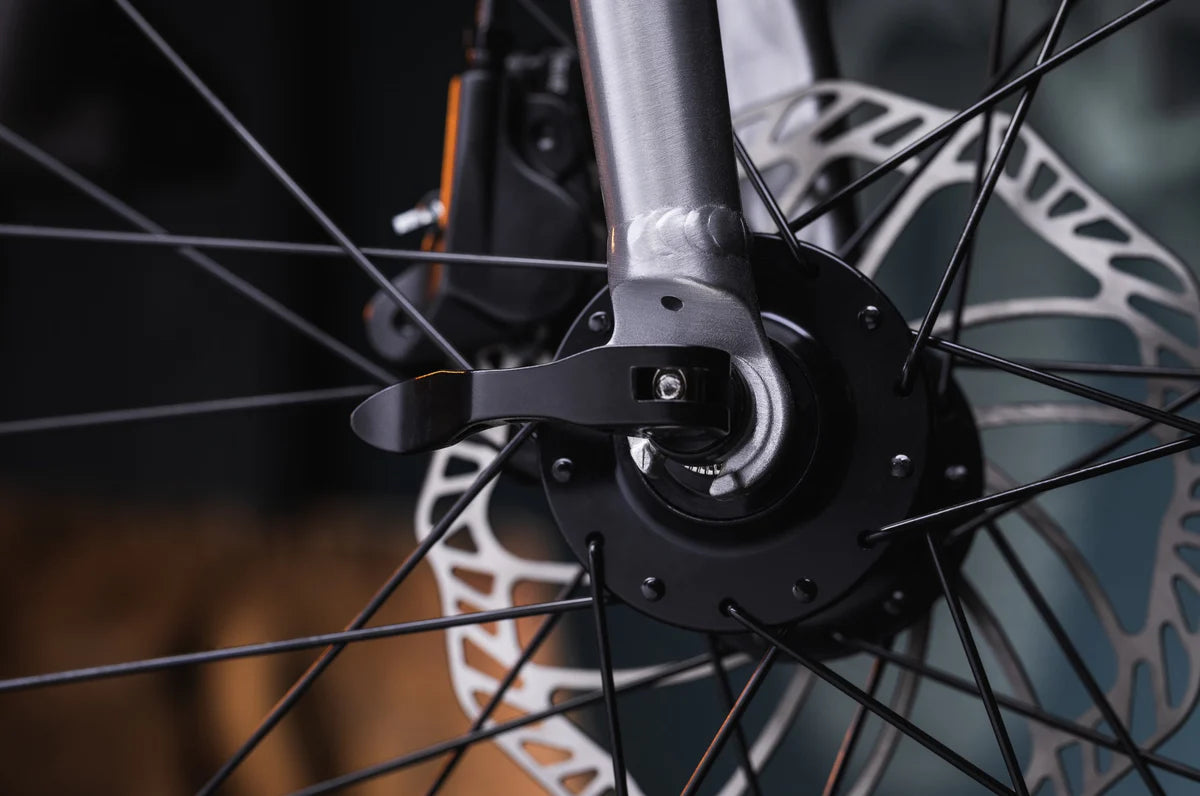

FRONT HUB |
CNC’D 6 BOLT DISC, AL6061, QR SKEWER |
AXLES |
AL6061 |
CHAIN |
BOX 3 |
CHAINRING
|
DIRECT MOUNT, NARROW WIDE 30T, STEEL |
WEIGHT |
9.95KGS W/O PEDALS |
REAR CASSETTE |
BOX 3, 11-46T (SILVER) |

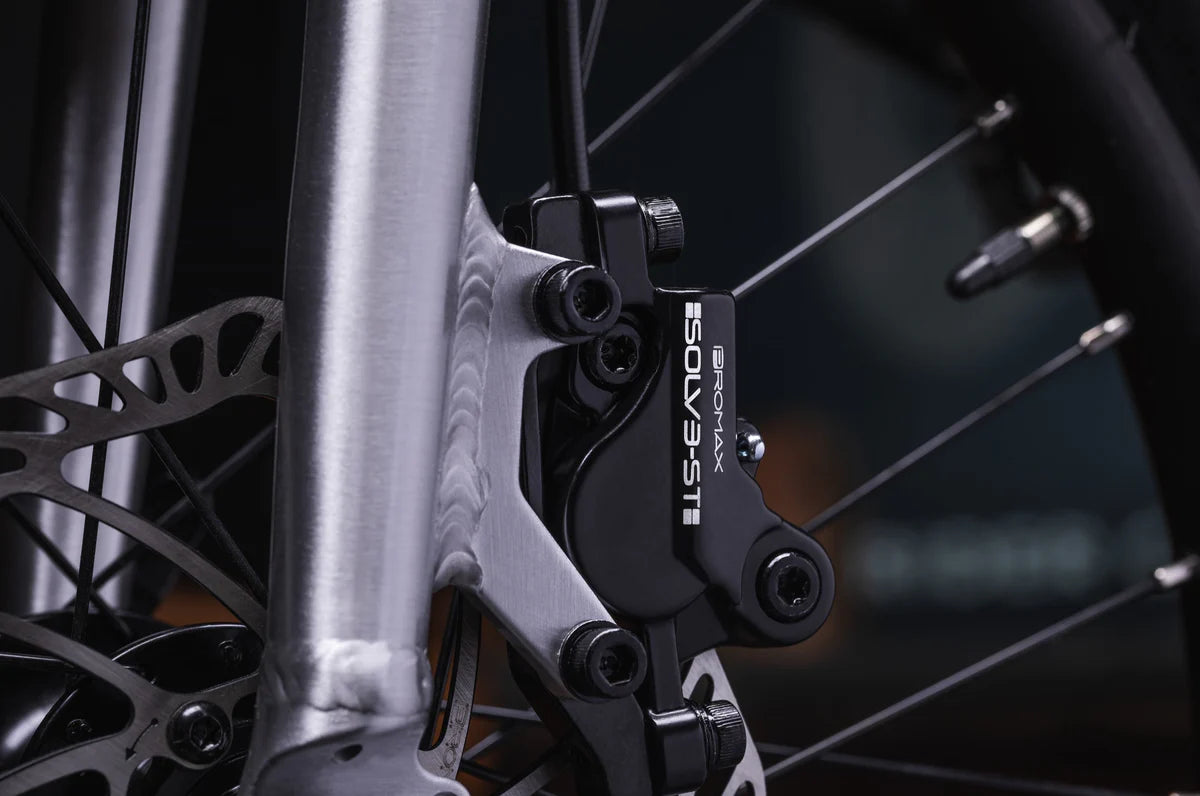

BRAKES |
PROMAX DSK926 HYDRAULIC JR, 160MM ROTORS
|
LEVERS |
PROMAX DSK926 JR |
FRONT TYRE |
VEE CROWN GEM 24x2.25", 27TPI WB |
REAR TYRE |
VEE CROWN GEM 24x2.25", 27TPI WB |
HEADSET |
1 1/8” CARTRIDGE BEARING, CONVENTIONAL |
STEM |
RITCHEY OS FORGED AL6061, 35MM REACH |
BARS |
640MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE |
GRIPS |
ER LOCK ON KRATON 115MM |
SEAT POST |
RITCHEY AL6061, 27.2MM x 350MM |
SADDLE |
SDG FLY JR, BLACK |
SEAT CLAMP |
ER QR, 31.8MM |
DERAILLEUR |
BOX 3, P9 CLUTCH EQUIPPED REAR MECH |
